• Description
     1H0 698 151 A
     HR1514- 1

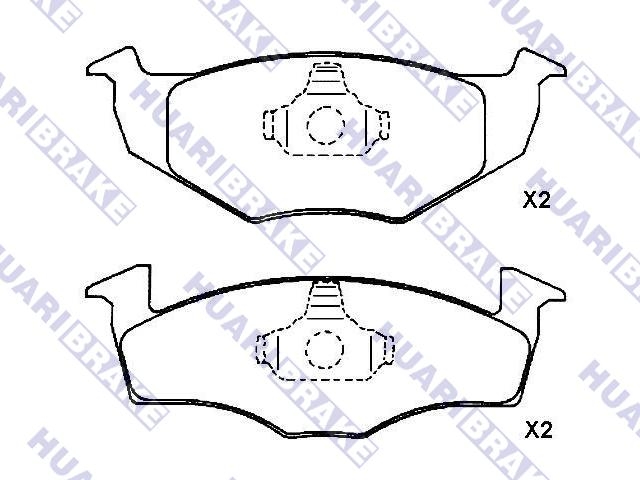

     Brake Pad Set
     SET

    Front Axle
    Brake System : Volkswagen
    Width : 141.6 mm
    Height : 51.2 mm
    Height 1 : 50.3 mm
    Thickness : 19.7 mm

Brake Pad Set:1H0 698 151 A
Model Engine Chassis Type CYL year
VOLKSWAGEN GOLF III (1H1)  1/91 - 8/97
VOLKSWAGEN GOLF III Variant (1H5)  7/93 - 4/99
VOLKSWAGEN POLO CLASSIC (6KV2)  1/95 - 9/97
VOLKSWAGEN POLO Van Box Body / Hatchback (6N1)  7/96 - 2/99
VOLKSWAGEN POLO Variant (6V5)  8/99 - 9/01
VOLKSWAGEN VENTO (1H2)  4/97 - 9/98

Application

VOLKSWAGEN Jetta 1996


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
