• Description
     45022-SB0-505
     HR1200- 1

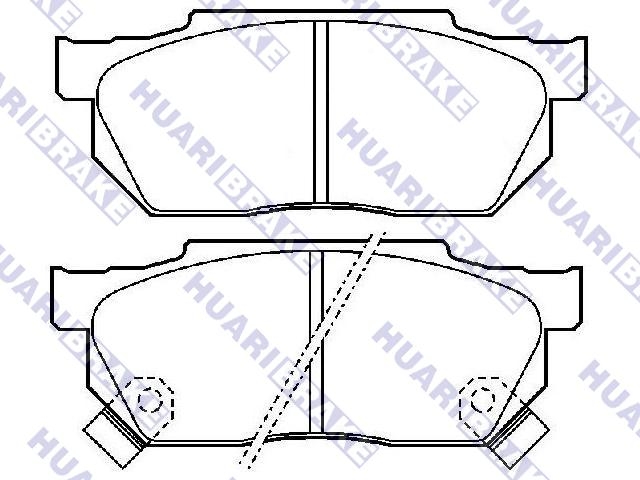

     Brake Pad Set
     SET

    Front Axle
    Brake System : AKB
    Width : 116 mm
    Height : 45 mm
    Thickness : 15 mm

Brake Pad Set:45022-SB0-505
Model Engine Chassis Type CYL year
HONDA CIVIC III Hatchback (EC, ED, EE)  9/89 - 9/91
HONDA CIVIC IV Hatchback (EG)  0/91 - 1/95
HONDA CRX II (ED, EE)  0/89 - 2/92

Application

HONDA Civic Station Wagon 1984-1987
HONDA CRX 1.5 1984-1986
HONDA CRX HF 1988-1991
HONDA CRX Si 1986-1987
HONDA Insight CVT Trans 2001-2006
HONDA Prelude 1983-1987
HONDA Wagovan 1986-1987


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
