• Description
     04491-12130

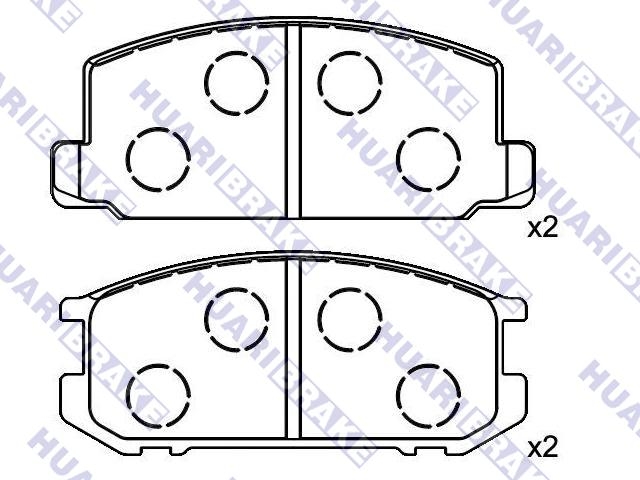

     Brake Pad Set
     SET

    Front Axle
    Brake System : AKB
    Width : 107 mm
    Width 1 : 109.2 mm
    Height : 52.15 mm
    Height 1 : 48.9 mm
    Thickness : 15 mm

Brake Pad Set:04491-12130
Model Engine Chassis Type CYL year
DAIHATSU CHARMANT (A)  8/83 - 7/87
TOYOTA CARINA (TA4L, TA6_L)  1/78 - 5/83
TOYOTA CARINA Estate (_A6_)  8/82 - 2/82
TOYOTA CELICA (_A4_)  2/79 - 7/81
TOYOTA CELICA Coupe (_A6_)  2/83 - 2/85
TOYOTA COROLLA Coupe (AE86)  8/83 - 7/87
TOYOTA COROLLA FX Compact (E8B)  8/85 - 8/87


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
