• Description
     04465-28260
     HR1002- 1

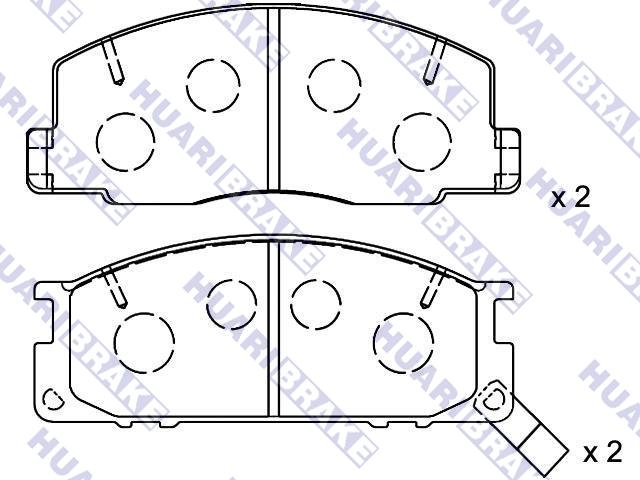

     Brake Pad Set
     SET

    Front Axle
    Brake System : AKB
    Width : 128.5 mm
    Width 1 : 137.0 mm
    Height : 51.5 mm
    Height 1 : 55.1 mm
    Thickness : 15.5 mm

Brake Pad Set:04465-28260
Model Engine Chassis Type CYL year
TOYOTA LITEACE Box (CM3_V, KM3_V)  8/88 - 1/92
TOYOTA LITEACE Box (_R2__V)  1/92 - 5/94
TOYOTA LITEACE Bus (_M3_)  8/88 - 1/92
TOYOTA LITEACE Bus (_R2_LG)  1/92 - 1/95
TOYOTA MODELL F (CR2_, YR2_)  8/85 - 1/90

Application

TOYOTA Van 4WD 1987-1989


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
