• Description
     04466-02400

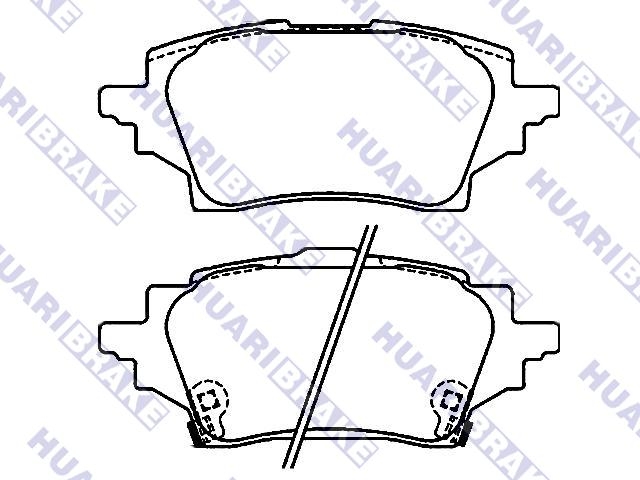

     Brake Pad Set
     PCS

    Rear Axle
    Brake System     : TRW
    Width : 118.2 mm
    Height : 48.9 mm
    Height 1 : 50.9 mm
    Thickness : 15.8 mm

Brake Pad Set:04466-02400
Model Engine Chassis Type CYL year
SUZUKI SWACE (AMZ_)  0/20 - /
TOYOTA C-HR (_X1_)  0/19 - /
TOYOTA COROLLA (_E21_)  2/19 - /
TOYOTA COROLLA Estate (_E21_)  2/19 - /
TOYOTA COROLLA Saloon (_E21_)  1/19 - /


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
